FASHIONFlex®PUFF – Specialty Materials

fabrics

Cotton, Uncoated Polyester, Fabric Blends, Polyester/Acrylic Blends, and Similar Fabrics

Excluding Nylon

sizing

Available Widths (in.):
19.5” only

Available Lengths (ft.):
15’, 30’, 45’, 60’, and 81’ rolls

thickness

4.9-6.7 mils/125-170 microns
Metallic: 12-20 mils/300-500 microns

• Puffs in one press
• Biggest color range of HTV puff
• Easy to weed
• Sticky carrier for easy placement

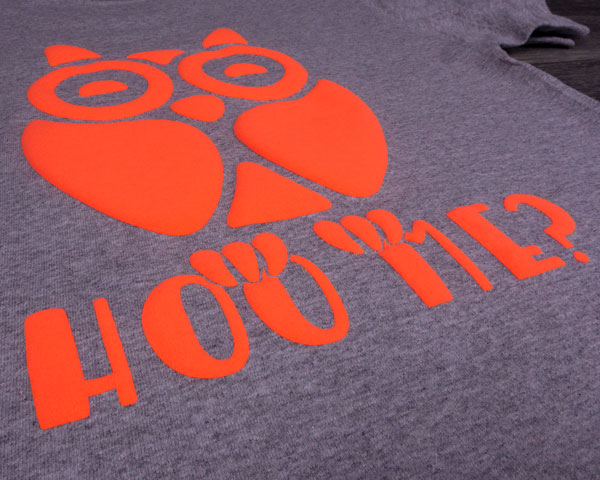

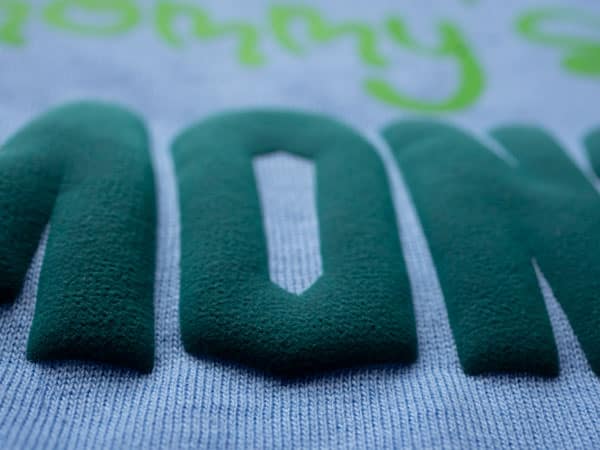

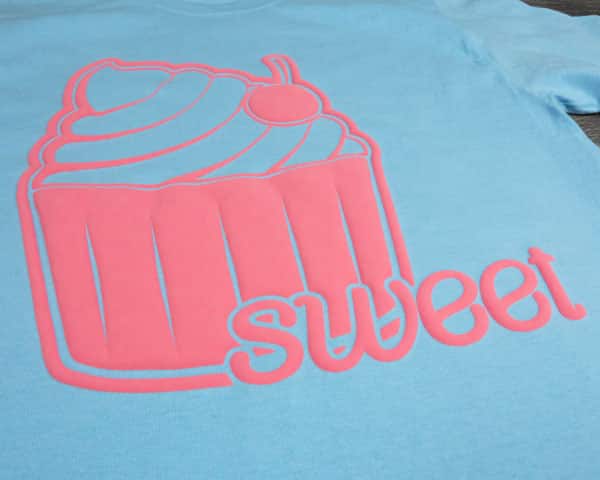

Add a fun 3D look to any design with FashionFlex® Puff!

FashionFlex® Puff is a puff product line available in 28 colors, plus 4 Metallic Puff colors – the most puff colors in the industry! This is super easy to use as you only need to press once to get that puff effect. It’s easy to weed and its pressure-sensitive carrier allows for easy repositioning.

PLEASE NOTE: Instructions can vary by color, please see the instructions on the outside of your roll.

LASER compatible

Application Instructions

IT'S BEST TO TEST!

If you’re using this product for the first time or trying a new garment, it’s always best to test on an inconspicuous area or spare garment before applying final production.

CUTTING
45° Blade
Metallic: 60° Blade recommended

MIRRORING
Cut this material into a mirror image.

TEMPERATURE
All colors:
255°F – *275°F
Vary Puff effect by increasing or decreasing temperature by 10°F within range.
*Metallic: 275°F

PRESSING
Medium Pressure

TIMING
12-14 seconds
Start at 12.
If more time is needed, press an additional 2 seconds.
Metallic: 10 seconds.

PEELING
Peel hot.
Remove the carrier and/or transfer sheet immediately.
Metallic: Re-press for 4 seconds for maximum puff.

WASHING
Wash inside-out, cold water, gentle cycle. Tumble dry low.

LAYERABLE?
No

Tech Info

Tech PDF includes product thickness, roll sizing, and other technical information

Cut Settings

PLEASE NOTE: Every blade and machine is a little bit different- always remember to test cut! These cut settings are a starting point to be adjusted to your blade and machine.

Cricut

Material: Iron-On
Pressure: Default
Blade: Fine-Point Blade

Silhouette

Material: Heat Transfer, Smooth
Blade: 3
Speed: 8
Force: 10

Graphtec

Speed: 8
Force: 18

We use a 45° blade.

Clear plastic side needs to be face down while cutting. Peel up a corner of the carrier to determine this before cutting. Carrier can be shiny or matte depending on batch.
