LUMINOUS Flex™ – Specialty Materials

fabrics

Cotton, Uncoated Polyester, Cotton/Polyester Blends, and Polyester/Acrylic Blends, Linen, Wool

Excluding Nylon

sizing

LF:4790 & LF-4791
Available Widths (in.):
15” and 20”

Available Lengths (ft.):
15” Width:
15’, 30’, 45’, 60’, 75’, and 90’ rolls

Available Lengths (ft.):
20” Width:
15’, 30’, 60’, and 90’ rolls

Neons & White
Available Width (in.):
12” & 20”

Available Lengths (ft.):
12” Width:
30’, 60’, 90’, and 162’ rolls

Available Lengths (ft.):
20” Width:
15’, 30’, 45’, 60’, 90’, and 162’ rolls

Sheets:
12”x15”
Packs of 10 & 20

thickness

LF-4790:
11.6 mils/290 microns

LF-4791:
5.9 mils/150 microns

Neons & White:
4.7 mils/120 microns

• Glow in the dark HTV
• Variety of colors and glows
• Excellent top layer, soft and thin
• LF-4790 doesn’t have a sticky carrier, the rest do.

Make a bright statement with a LuminousFlex™!

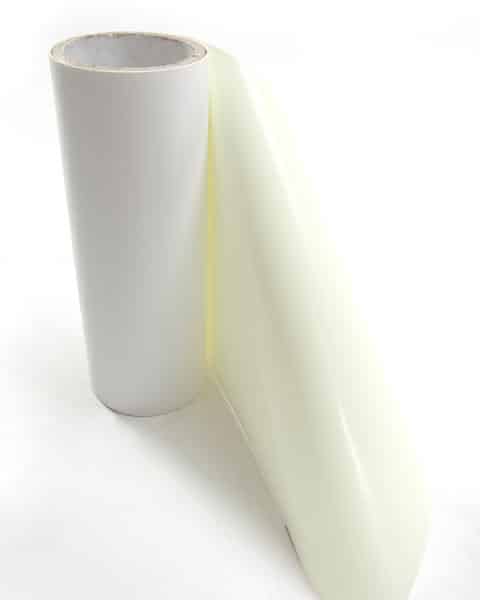

LuminousFlex™ is a glow-in-the-dark heat transfer vinyl. This HTV is soft and thin, taking on finer details with grace. It feels and acts similarly to ThermoFlex® Plus! Our LuminousFlex™ gives your design an unexpected bright glow when the lights go out.

LuminousFlex™ is suitable for sportswear, leisurewear, and many other applications. There are three types of LuminousFlex™-
• LF-4790 is thicker, has a non-sticky carrier, and no stretch. Has a green glow.
• LF-4791 has a blue, sticky carrier and has a little stretch. Has a green glow.
• White & Neons have a sticky carrier and a little stretch. Glow varies by material.

LASER compatible

Application Instructions

IT'S BEST TO TEST!

If you’re using this product for the first time or trying a new garment, it’s always best to test on an inconspicuous area or spare garment before applying final production.

CUTTING
LF-4790: 60°
All others: 45°

MIRRORING
Cut this material into a mirror image.

TEMPERATURE
LF-4790: 320° F
All Others: 300° F

PRESSING
Medium to Firm Pressure

TIMING
LF-4790: 15 seconds
LF-4791: 12 seconds
Neon/White: 8 seconds

PEELING
Peel warm.

WASHING
Wait 24 hours before the first wash. Wash inside-out, gentle cycle, warm water, tumble dry, low heat. No bleach. Do not iron with steam or directly onto the material. Suitable for dry-cleaning.

LAYERABLE?
Top layer only

Tech Info

Tech PDF includes product thickness, roll sizing, and other technical information

Cut Settings

PLEASE NOTE: Every blade and machine is a little bit different- always remember to test cut! These cut settings are a starting point to be adjusted to your blade and machine.
